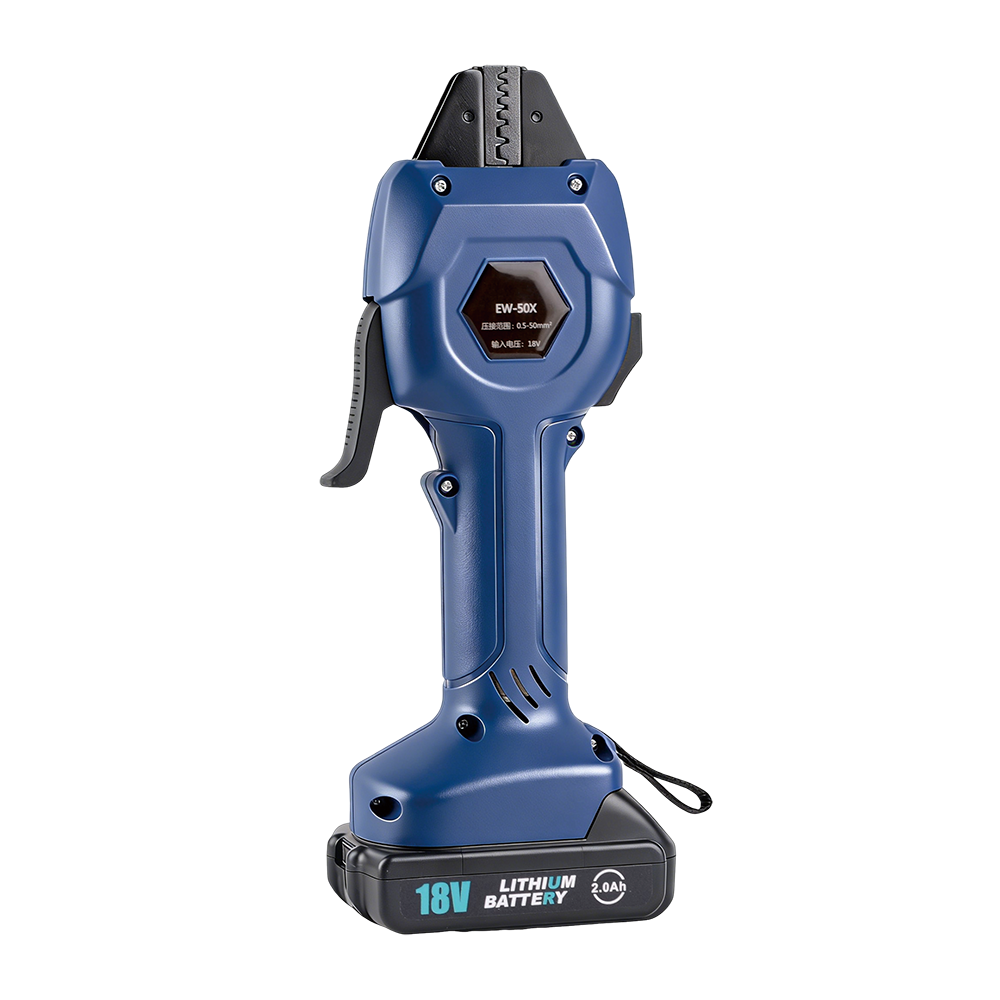

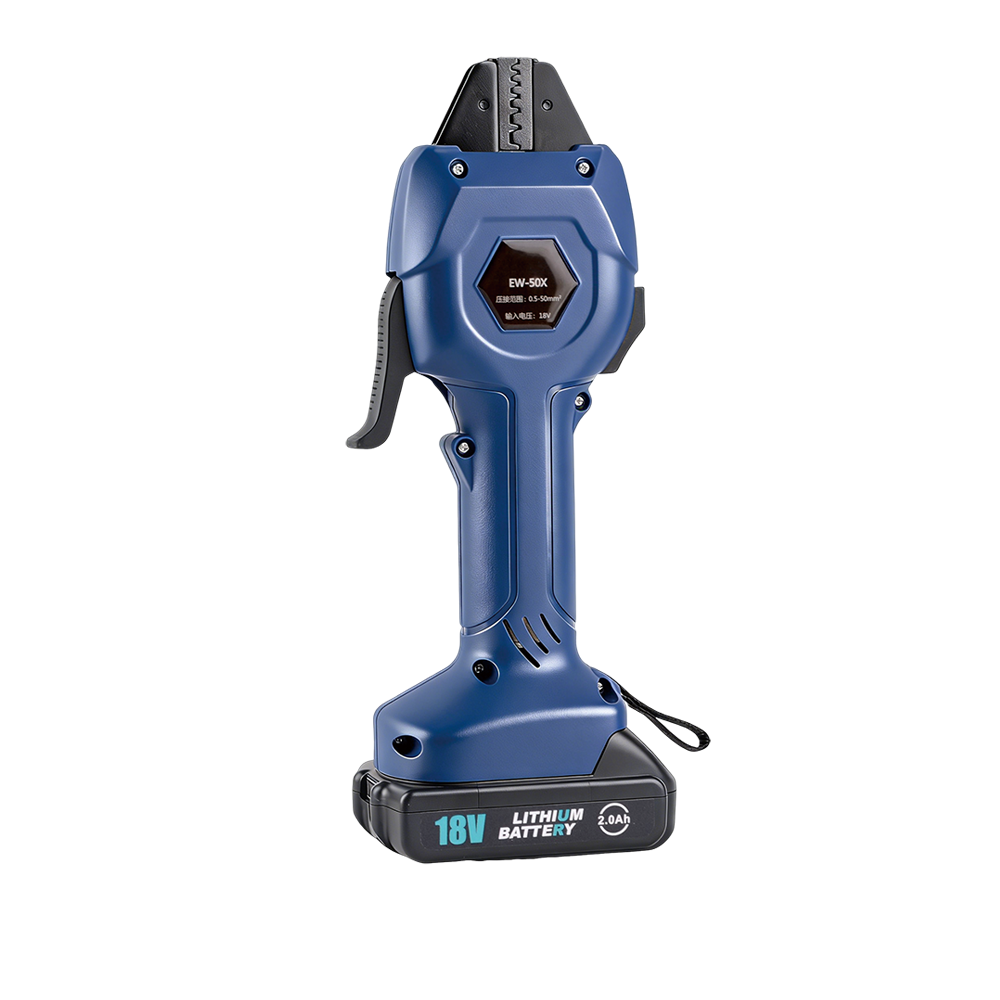

产品名称:EW-50X
产品说明:
• 简单安全:一键操作理念,控制所有工具功能
• 具有锁定功能的电子控制监控模具完全闭合
• 简单安全:操作完成时自动收缩根据
• 需要手动收缩
• 电机失速保护
• 重量极轻、速度快、效率最高
• 强大的驱动技术实现轻松操作
• 显示充电状态的强大的18V锂离子电池
• 工作区域LED照明
• Simple and Safe: One-button operation controls all tool functions
• Electronic control with lock function monitors complete mold closure
• Simple and Safe: Automatic retraction upon task completion
• Manual retraction as needed
• Motor stall protection
• Ultra-lightweight, high-speed, maximum efficiency
• Powerful drive technology ensures effortless operation
• Robust 18V lithium-ion battery displays charge status
• LED work area illumination
| 工具参数 Tool parameter | ||
| 出力 | Output | 16KN |
| 压接范围 | Crimping range | 0.5-50 mm² (TG-JT型即管型预绝缘端子) 0.5-10 mm² (TO.TU型即圆形、叉形裸端子) 0.5-6 mm² (TO-JTK TU-JTK型即圆形、叉形预绝缘端子 |
| 包装方式 | Packaging | 塑料箱 |
| 重量 | Weight | 1.4kgs(带电池) |
| 产品尺寸 | Product Size | 310x118x76mm |
| 配件 Accessories | ||
| 压接模具 | Crimping die | 7付 |
| 电池 | Battery | 18V Li-ion 2.0Ah |
| 充电电压 | Charging voltage | AC 100V-240V 50-60Hz |
